Innoflyer Light module Luna S 27mm

Regular price $40.00

Innoflyer Light module Lena S 27mm

Product description and features

Drop-shaped combination light module in white / green or white / red. for example, used as position and anti-collision lighting (Strobe).

variant Description

  • Variant White/Green: For use for example as a green position light and white collision warning light (strobe) in the surface tip on the starboard side (right).
  • Variant White/Red: For use for example as a red position light and white collision warning light (strobe) in the surface peak on the port side (left).

connection

The combination light module can be connected directly to two SLC outputs (Smart Light Channel) of the Light Driver 5.0 light control (see accessories). There are no soldering and no series resistors necessary.

  Innoflyer light module Luna S 27mm (Dimensions and Connection Drawing).


 Dimensions   27 X 8 X 6 mm
                             Color   White/Green or White/Red

Intelligent lighting control

  • Plug & Play type recognition: The headlamp is automatically detected by the Light Driver 5.0 light control. The light control regulates the luminosity and thus the heat development according to the thermal properties of the headlight housing.
  • MLT technology (Maximum Light Tracking): Optionally, the headlamp can be operated with the full light output. An integrated thermal sensor enables the Light Driver 5.0 light control to automatically regulate the light output with high heat generation.

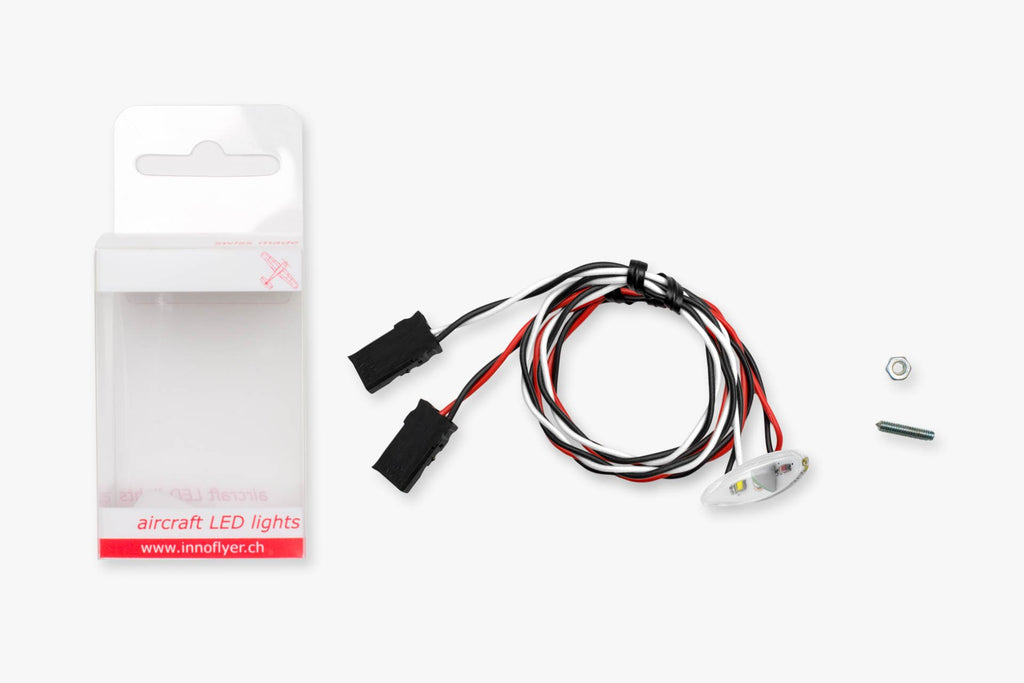

      What's on the Box?

      1 pc. of the respective variant

       Instruction manual English

      Downloads
